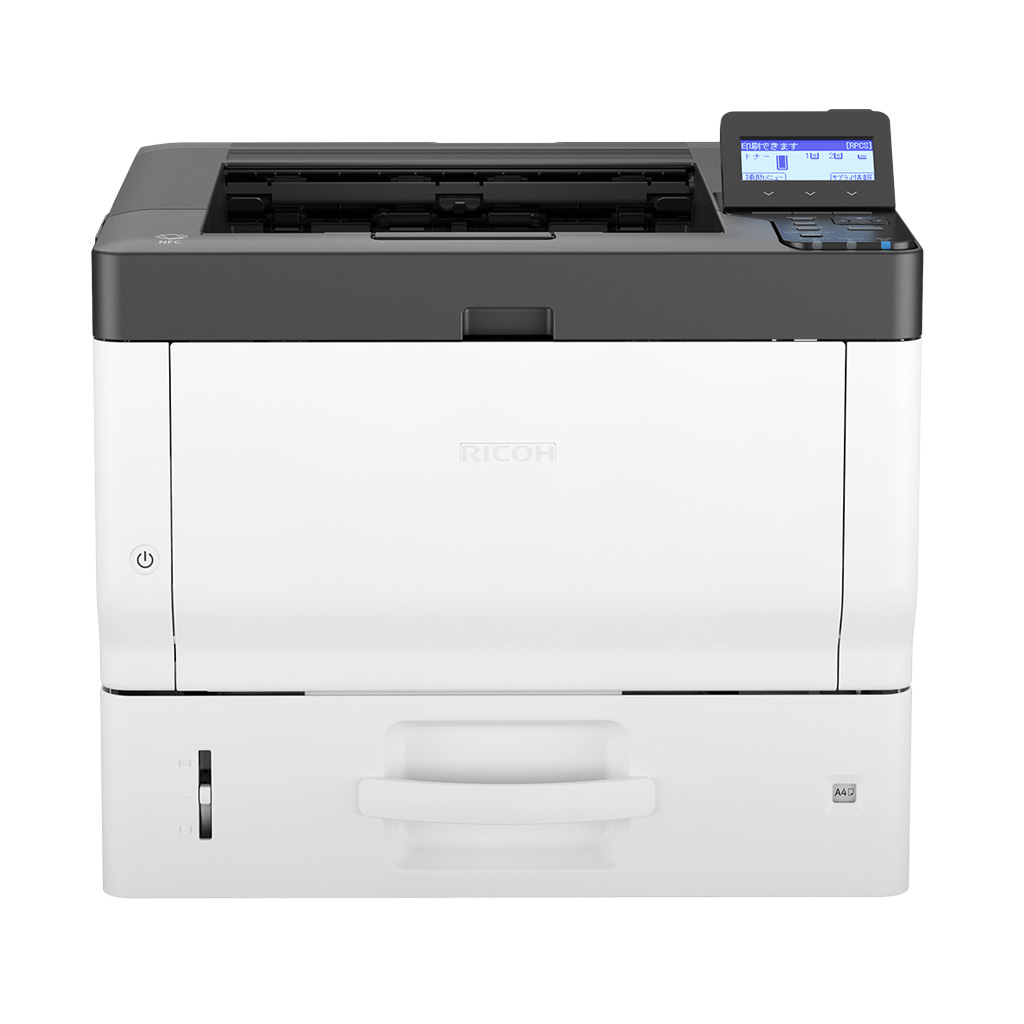

P 501 A4 black and white printer

  • Envelope and label printing
  • Prints up to 43 ppm
  • Standard PostScript 3 and PDF Direct
  • RICOH Smart Device Connector

Compact and Durable

Ricoh's innovative LED technology delivers significant advances in speed, quality and reliability. With its powerful Intel 1.1 - 1.3 GHz processor, the Ricoh P 501 quickly processes even the most complex jobs, printing pitch-perfect 1,200 x 1,200 dpi black and white output at a productive 43 pages per minute. And, with its high duty rating, it reliably meets peaks in demand.

  1. Excellent performance
    Maximum input capacity of 2,100 sheets with optional paper banks provide longer uninterrupted print runs.
  2. High quality output
    Maximum 1,200 x 1,200 dpi print resolution ensures sharp and crisp text every time.
  3. Reliable and easy to use
    Compact footprint enables devices to be installed in almost any location—from office desks to under retail shop counters.
  4. Security in our DNA
    DataOverwriteSecurity System (DOSS) keeps hard drive contents protected, making all confidential data unrecoverable by overwriting latent digital images after all print jobs.

Download PDF brochure


Specifications

Functions
Print
Colour
No
HDD
320 GB—optional
Memory - standard
2 GB
Operation panel
4-line LCD
Physical dimensions (WxDxH)—mainframe
375 x 412 x 311 mm
Weight—mainframe
19.3 kg
Standard input capacity (sheets)
600
Maximum input capacity (sheets)
2,100
Standard output capacity (sheets)
250
Maximum output capacity (sheets)
250
Paper input configuration - standard
500-sheet paper input tray, 100-sheet bypass tray, duplex unit
Paper output configuration - standard
250-sheet face-down paper output tray
Supported media
Plain paper (type not displayed), recycled paper, special paper 1–2, colour paper, letterhead, pre-printed paper, OHP, label paper, envelope
Maximum paper size
A4
Media weight (g/m2)
52–256
Interfaces - standard

10Base-T/100Base-TX/1000Base-T (Gigabit Ethernet)
USB 2.0
USB Host 2.0

Interfaces - optional
One of these can be installed:
USB Device Server (additional Ethernet/Gigabit Ethernet port)
IEEE 802.11a/b/g/n (Wireless LAN)
IEEE 1284
Network protocols - standard
TCP/IP (IPv4, IPv6)
Print speed black and white
43 ppm—A4 LEF, simplex
37 ppm—A4 LEF, duplex
First print time
4.3 seconds or less
Print resolution
1,200 x 1,200 dpi
Page description languages (PDLs)

Standard
PCL 5e, PCL 6, PostScript 3 emulation, PDF Direct emulation

Optional
Genuine Adobe PostScript 3, PDF Direct from Adobe, XPS Direct Print, IPDS

Note: HDD option is required if the IPDS option is installed.

Printer drivers
PCL 5e, PCL 6, PostScript 3
Duplex printing
Standard
Mobile printing
Yes
Data Overwrite Security System (DOSS) - Standard
Yes—with optional HDD
Encryption
HDD encryption—with optional HDD
Authentication password encryption
Authentication
User authentication—Windows and LDAP via Kerberos, Basic, User Code
802.1x wired authentication
Wireless LAN security (WEP, WPA2, 11i)
IPv6
Quota setting
WiFi Protected Setup (WPS) support
Windows
Windows 7
Windows 8.1
Windows Server 2008
Windows Server 2008 R2
Windows Server 2012
Windows Server 2012 R2
Windows 10
Windows Server 2016
Macintosh
OS X Native v10.10 or later—PostScript 3 only
Unix
Sun Solaris—10
HP-UX—11.x, 11iv2, 11iv3
Red Hat Linux—Enterprise, v4, v5, v6
SCO OpenServer—5.0.7, 6.0
IBM AIX—6.1, 7.1, 7.2
SAP
Environment—R/3, S/4
Platforms—SAP R/3 (release versions 3.0 and above), SAP R/3 Enterprise, mySAP ERP (2004 and higher), SAP HANA
Page description language—PCL
Character sets—Latin-1, Latin-2, Unicode
Supported features—Input/output bin, Duplex, Resolution, Collation, EconoMode/Toner saving, Page protect, Auto tray change/Opt tray select ,User authentication
Barcode fonts—Code 128, Code 39, Code 93, Codabar, 2 of 5, MSI, USPS POSTNET, EAN/UPC
OCR fonts—OCR A, OCR B
IBM
iSeries/AS/400—Using OS/400 Host Print Transform
Standard
@Remote Embedded
Web Image Monitor
Optional
RICOH Streamline NX v2 and v3
Enhanced Locked Print NX v2 and FlexRelease Server v2
FlexRelease CX
Card Authentication Package v2 and Enterprise Server v2
Device Manager NX Lite and Accounting
Printer Driver Packager NX
Device Manager NX Pro and Enterprise
RICOH @Remote Connector NX
Mobile apps
Smart Device Connector
Power source
220–240 V, 7 Amps, 50/60 Hz—Asia Pacific
110 V, 12 Amps, 60 Hz—Taiwan
Power consumption
1,260 W or less—maximum power, guaranteed
597 W—printing, nominal
79.6 W—Ready Mode, nominal
0.63 W—Energy Saver Mode (Sleep Mode), nominal
Typical Electricity Consumption (TEC)
0.54 kWh
Warm-up time
13 seconds or less
Power saving mode
1 minute; default shift time—Energy Saver Mode (Sleep Mode)
Recovery time
10 seconds or less—Energy Saver Mode (Sleep Mode)
Green labels
Thai Green Label Scheme, Hong Kong Energy Efficiency Labelling Scheme, Blue Angel Mark (BAM)
