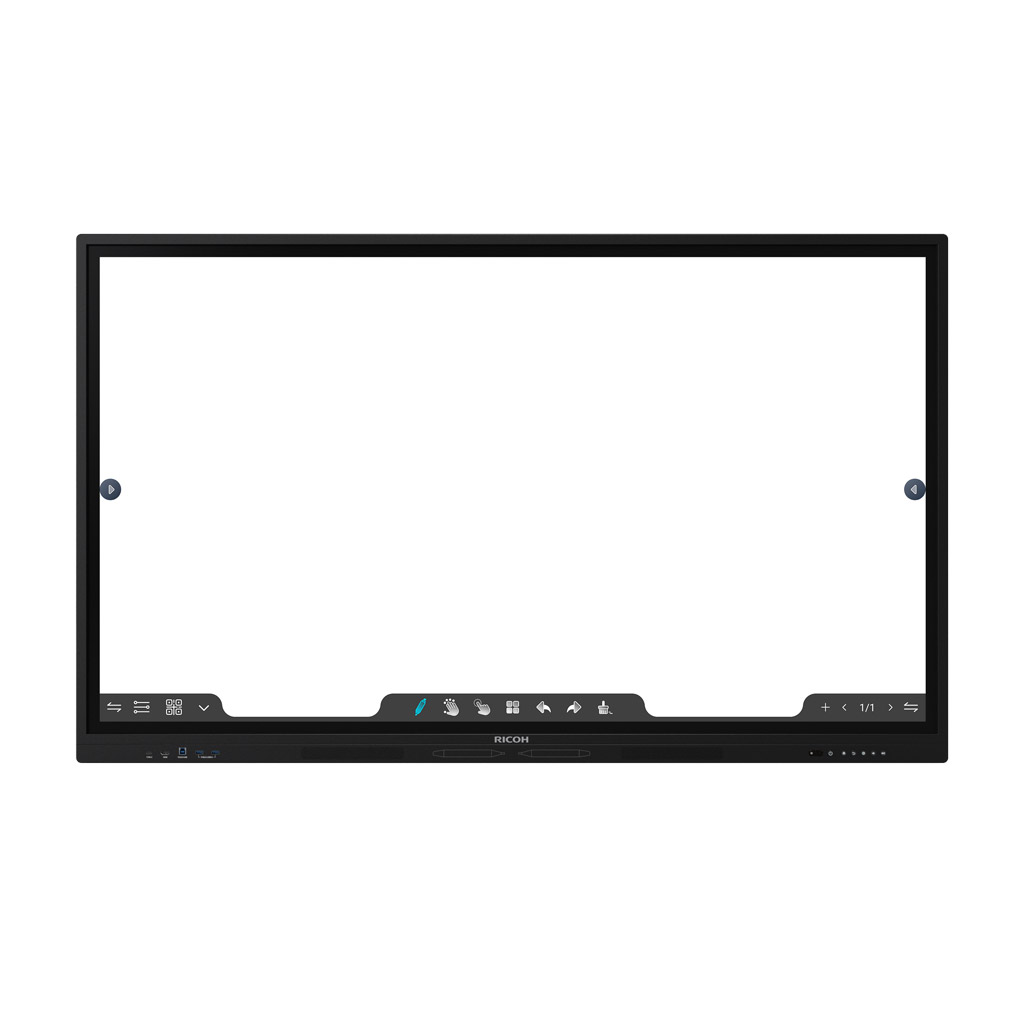

    RICOH Interactive Whiteboard A6500 Interactive whiteboard

    • 65" touchscreen
    • 3,840 x 2,160 pixels
    • 350 cd/m2 brightness
    • Plug and Play Android apps
    Related Links
      When you need to work together - don’t let distance come between you

      Make meetings collaborative wherever they are, with the new Ricoh Interactive Whiteboards.

      Designed for business

      With its easy-to-use interface and built-in Apps, the new whiteboards offer seamless communication and collaboration. Ideal for hybrid working, allowing multiple people to write on the same screen.

      1. Simple connectivity and usability
        It’s easy to sync your device to the screen, simply choose how you connect – HDMI, USB or USB Type-C.
      2. Effective split-screen presentation
        Using two screens is a standard most expect in work and presentations. Run two different apps or images side by side with the interactive whiteboard and get more from your meetings.
      3. Useful picture-in-picture function
        A picture can speak a thousand words – so add an image to your whiteboard with the picture-in-picture function. This could be data, charts or stock shots that help get your point across.
      4. Plug and Play Android Apps
        Embedded with Android OS, you can use all your favourite apps. Many apps are preloaded and ready for use to save you time, such as the whiteboard and wireless presentation apps.
      Download Brochure

      Specifications

      What's included

      Touch pen
      2 pcs

      Read this first and Quick Guide
      In English, French, German, Spanish, Brazilian Portuguese

      Remote controller
      Yes

      Batteries for remote controller
      2 x AAA batteries

      Power cord
      Yes

      USB-C cable
      Yes—2 m

      USB A-B cable
      Yes—3 m

      HDMI 2.0 cable
      Yes—3 m

      Plastic clamp
      2 pcs

      Physical dimensions (WxDxH)—mainframe
      1,512 x 88 x 921 mm
      Weight—mainframe
      39 kg
      Panel size
      65 inches
      Backlight
      D-LED
      Effective display area
      1,428.48 x 803.52 mm
      Resolution
      3,840 x 2,160 pixels
      Colour reproduction
      1.07 billion colours (8-bit + Frame rate control)
      Brightness
      350 cd/m2—typical
      Contrast
      1200:1
      Pixel pitch
      0.372 mm
      Response speed
      8 ms
      Viewing angle HV
      178 degrees
      Audio
      Rear
      1 x 3.5 mm mic and other audio source in
      1 x 3.5 mm audio out
      1 x SPDIF
      Video

      Rear
      2 x HDMI 2.0 in
      1 x DisplayPort in
      1 x VGA in
      1 x USB 2.0 Type A
      2 x USB 3.0 Type A
      1 x HDMI 2.0 out

      Front
      1 x HDMI 2.0 in

      Touch technology
      Infrared touch frame
      Touch points
      20
      Touch resolution
      32,768 x 32,768—interpolated
      Touch output
      HID Standard, USB 2.0 full speed
      Touch panel cover glass
      3.2 mm toughened glass
      Interfaces - standard

      Rear
      2 x HDMI 2.0 in
      1 x DisplayPort in
      1 x VGA in
      1 x Audio in
      2 x LAN—10/1000 Base-T, 100 Base-TX (to OPS), 10/1000 Base-T (to Android)
      1 x USB 2.0 Type A
      2 x USB 3.0 Type A
      1 x USB 3.0 Type B—touch interface
      1 x Mic in
      1 x SPDIF in
      1 x HDMI 2.0 out
      1 x Audio out
      1 x RS-232 in

      Front
      1 x USB Type C
      2 x USB 3.0 Type A
      1 x USB 3.0 Type B—touch interface for HDMI
      1 x HDMI 2.0 in—HDCP compliant

      Interfaces - optional
      With Ricoh IWB Controller OP-5 Type 2
      10Base-T/100Base-Tx/1000Base-T
      Bluetooth—embedded
      IEEE 802.11 ac/a/b/g/n/ax
      1 x HDMI output
      2 x USB 3.0 Type A
      2 x USB 2.0 Type A
      1 x USB Type C
      1 x 3.5 mm mic jack
      1 x 3.5 mm headphone jack
      Windows

      System
      Windows 10 Professional, 64-bit
      *This device meets the system requirements to install Windows 11.

      Multi-touch
      Windows 7, 8, 10

      Single-touch
      Windows XP

      Macintosh
      Single-touch
      Mac OS X
      Supported languages
      On-screen display
      Japanese, English, French, German, Italian, Spanish, Dutch, Danish, Russian, Polish, Swedish, Norwegian, Finnish, Brazilian Portuguese, Czech, Romanian, Greek, Turkish, Simplified Chinese
      Power source
      100–240 V, 50–60 Hz
      Power consumption

      Without optional controller
      300 W—max brightness
      180 W—typical
      0.5 W or less—standby

      Environmental standards
      REACH
      ErP Lot 5
      EU battery (2006/66/EC)
      EU packaging (94/62/EC)
      WEEE
      RoHS EN63000 (CE marking)
      Safety standards
      EN62368-1 (CE marking)
      EN62368-1 (TUV)
      IEC60950-1 / IEC62368-1 (CB attestation)
      TH-A (Thailand)
      Electromagnetic Compatibility (EMC) standards
      EN55035, EN55032, EN61000-3-2, EN61000-3-3 (CE marking)
      AS / NZS CISPR32 (C-Tick) (Australia / NZ)
      HK EMC (Hong Kong)
      EN62311 (CE marking)
      Wireless LAN standards
      EN300328 / EN301893 (CE marking)
      EN301489-1 / EN301489-17 (CE marking)
      EN300328 / EN301893 (RCM) (Australia / NZ)
      EN301489-1 / EN301489-17 (RCM) (Australia / NZ)
      Operating environment

      Temperature
      0–32ºC—operating
      -10–50ºC—storage

      Humidity
      20–80%—operating
      15–80%—storage
